YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices

Je suis en ligne une discussion en ligne

YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices

YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices
YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices

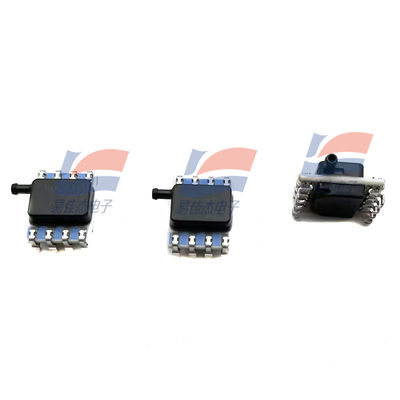

Image Grand :  YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices

Détails sur le produit:
Lieu d'origine: États-Unis
Nom de marque: YJJ
Numéro de modèle: HSCMRNN001PDAA3
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: Négociable
Détails d'emballage: Mise en poche
Délai de livraison: 5 à 8 jours ouvrables
Conditions de paiement: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 22000

YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices

description de
Longueur d'onde: 5nm Détection à courte distance: 3
Type de sortie: Amplification analogique Tension d'alimentation: 5.0
Température de fonctionnement: -40 à +85 Package/spécification: TMS
Mettre en évidence:

HSCMRNN001PDAA3 Pressure Sensor

,

HSCMRNN001PDAA3

,

Medical Devices Pressure Sensor

Product Description:

HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices



Features:

Built-in pressure sensor of the TruStability™ HSC series is compensatory. TEB (Total Error Band): ±1% FSS to ±3% FSS (differential pressure, gauge pressure), low (absolute pressure, differential pressure, gauge pressure). Digital or analog output. DIP, SIP, SMT

Pressure range

±1.6 mbar to ±10 bar, ±160 Pa to ±1 MPa, ±0.5 inH2O to ±150 psi

The silicon ceramic (HSC) series are piezoresistive silicon pressure sensors, providing proportional analog outputs or digital outputs, which are used to provide pressure readings within the full-scale pressure range and temperature range of the device. The HSC series can utilize the integrated circuits  on the circuit board to perform calibration and temperature compensation for the sensor's zero point, sensitivity, temperature coefficient, and non-linearity. The calibrated analog output values and digital output values are updated at rates of approximately 1 kHz and 2 kHz respectively.

The HSC series is calibrated within the temperature range of 0°C to 50°C [32°F to 122°F]. This sensor is characterized by its ability to operate under a single power supply of 3.3 Vdc or 5.0 Vdc.

These sensors can measure absolute pressure, gauge pressure or differential pressure. The absolute pressure type sensor uses vacuum pressure as the internal reference value, and its output value is proportional to the absolute pressure. The gauge pressure type sensor uses atmospheric pressure as the reference and provides an output value that is proportional to the difference from atmospheric pressure. The differential pressure sensor can measure the pressure between the two pressure ports.

The TruStability® pressure sensor is designed to be used in conjunction with non-corrosive and non-ionic gases, such as air and other dry gases. Through a wide range of options, the performance of these sensors can be extended to pressure ranges exceeding 40 mbar, 4 kPa, and 20 inH2O.

All products are designed and manufactured in accordance with the ISO 9001 standard.

Application fields

Health:

Gas mass flow monitor

Anesthesia machine



Blood analyzer

Gas chromatograph

Gas flow instrument

Renal analyzer

Oxygen generator

Pneumatic control

ventilator / respirator



Sleep apnea assistance device

ventilator / respirator



Pulmonary capacity meter

Atomizer

Hospital indoor air pressure control





Specifications:

Work stress ±160Pa~±1MPa
Output voltage 3.3
Accuracy 0.25% Series
Supplier Device Package SIP



YJJ HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices 0
