Product Description:

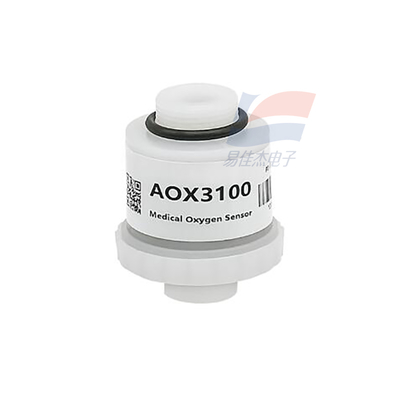

YJJ AOX3100 Electrochemical Full-Range Lead-Free Oxygen Sensor Oxygen Battery with Temperature Compensation
Features:
AOX3100 full-range lead-free oxygen sensor operates without an external power supply. It has undergone professional and accurate product calibration and temperature compensation at the factory. It can be used as a sensing component in oxygen analyzers, such as oxygen generators, control devices for medical ventilators, anesthesia equipment, incubators, etc.
Working principle: Differential electrochemical
Output voltage: 9 - 14 mV (in air)
Measurement range: 0 - 100%
Response time (T): 0 - 100%
Linearity: Full-scale linearity
Temperature compensation: < 2%0, equivalent value (0~40°C)
Load resistance: > 10kQ
Interface: Molex 3-pin connector (2.54mm) (MOLEX 22-29-2031)
Recommended matching interface: Molex housing (MOLEX22-01-2035)
Molex crimp terminal (MOLEX08-45-0110)
Shell material: White HDPE
Weight: Approximately 30 grams
Operating temperature range: 0 - 50°C
Recommended storage temperature: 5 - 15°C
Operating pressure range: 0.5 - 2.0 bar
Operating humidity range: 0 - 99% RH (no condensation)
100%0, long-term drift in the environment
Expected lifespan: 24 months
Warranty period: 12 months
Specifications:
| Minimum Operating Temperature |
-40 °C |
| Maximum Operating Temperature |
+85 °C |
| Series |
AOX3100 |
| Weight |
Approximately 30 grams |
