Product Description:
YJJ AGR12 Type Pressure Sensor Is Used In Medical Electronics Field
Features:

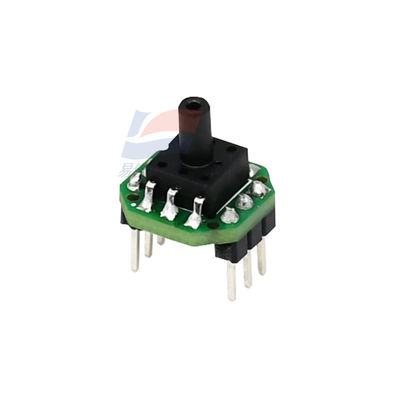

AGR12 pressure sensor adopts a DIP-like packaging form, which facilitates the insertion and removal of components and is highly suitable for automated assembly equipment. On both sides of the PCB board, there are SOP-encapsulated pressure sensors and signal processing circuit chips installed. These sensors' offsets, sensitivities, temperature drifts, and non-linearities are digitally compensated with respect to the power supply voltage, generating a calibrated and temperature-compensated standard voltage signal. It is an ideal low-cost and high-precision pressure sensor.
The AGR12 pressure sensor is small in size and easy to install. It has a standard 1C output signal and is widely used in medical electronics, automotive electronics, and sports and fitness equipment fields.
Medical fields: electronic blood pressure monitors, ventilators, oxygen generators, monitors
Tire pressure gauges, power steering, braking assistance, intake pressure sensors, etc. in the automotive electronics field
Exercise and fitness equipment fields: massagers, massage chairs, air mattresses, etc.
Industrial fields: water heaters, ozone water machines, beer machines, coffee machines, air pumps, vacuum pumps, pressure gauges, electric breast pumps, vacuum cleaners, etc.
Power supply method: 4.75 - 5.5V
Measurement range: -100 - 100 kPa
Accuracy: ±2.5% Span
Overload pressure: 5x (FS ≤ 40 kPa) %FS 2x (FS≥100kPa)%FS
Working environment: -30 to 100℃
Output signal: 0.5 to 4.5V / I²C
Size: 19.9 * 13 * 13mm
Specifications:
| Constant voltage supply |
< 12.5V |
| Temperature |
-40℃ ~ +80℃ |
| Repeatability |
±0.3%FS |
| Temperature |
±0.5℃ |
