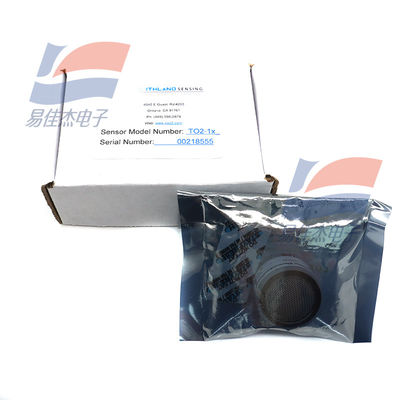

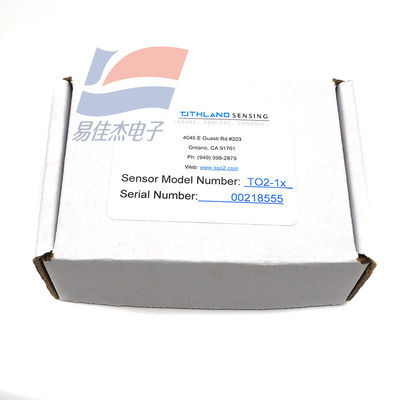

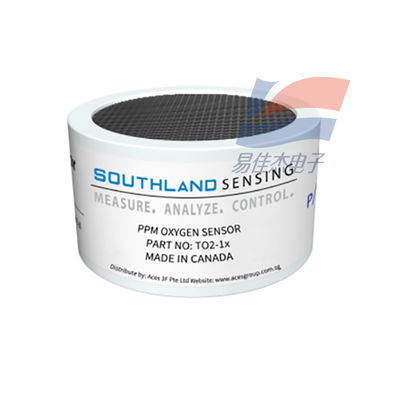

YJJ TO2-1X 0-10 PPM Oxygen Gas Sensor Is Used For Optical Gas Detectors

Product Description:

YJJ TO2-1X Oxygen Gas Sensor Is Used For Optical Gas Detectors

Features:

1, PPM oxygen sensor TO2-1X Product Description:
The oxygen sensor TO2-1X is PPM level, and the measurement range is 0-10PPM and 0-10000PPM. Using micro fuel cell sensor technology, it has the characteristics of high precision and long life.
2. PPM oxygen sensor TO2-1X Application field:
Widely used in air separation units, chemical & petrochemical processes, steel and other fields of oxygen content testing.
3. PPM oxygen sensor TO2-1X parameters:

Sensor technology

Micro fuel cell

Signal output

285-590uA

Measuring range

0-10PPM(Min), 0-10000PPM(Max)

Response time T90

13 seconds

Full range accuracy

±1%F.S

Full range repeatability

Plus or minus 0.5%

Temperature coefficient

2.54% / ℃

Operating temperature

0 to 50 ℃

Storage temperature

0-45 ℃

Recommended flow rate

0.5 5 SCFH

humidness

0-100%RH(non-condensing)

Life expectancy

20-25 months

store

6 months

Keep under warranty

12 months

PCB connection

Center foil negative external foil positive level

Measuring signal output at 25 ° C, sea level, air
Calculating full range accuracy under constant pressure and temperature and suitable calibration conditions, drastic temperature changes can result in an error of Max.±10%
At O2 concentration
