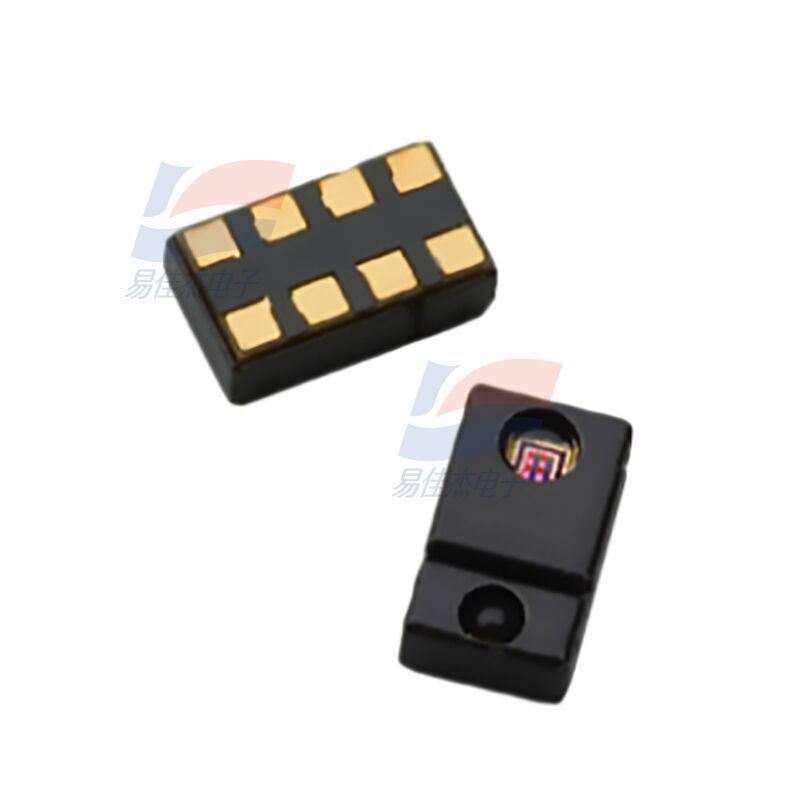

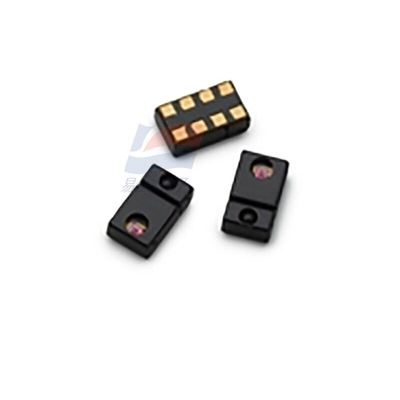

YJJ APDS-9960Digital RGB Ambient Light Proximity And Gesture Sensor
Features:
Broadcom APDS-9960 is a digital RGB, ambient light, proximity and gesture sensor device in a single 8-pin package. The device has an I2C compatible interface providing red, green, blue, clear (RGBC), proximity and gesture sensing with IR LED. The RGB and ambient light sensing feature detects light intensity under various lighting conditions and through various attenuation materials including darkened glass. In addition, the integrated UV-IR blocking filter enables accurate ambient light and correlated color temperature sensing.
Proximity and gesture feature is factory-trimmed and calibrated to 100mm proximity detection distance without requiring customer calibrations. Gesture detection utilizes four directional photodiodes, integrated with visible blocking filter, to accurately sense simple UP-DOWN-RIGHT-LEFT gestures or more complex gestures. The addition of micro-optics lenses within the module provides high efficient transmission and reception of infrared energy. An internal state machine allows the device to be put into a low power state between RGBC, proximity and gesture measurements providing very low power consumption.
APDS-9960, Digital Proximity, Ambient Light, RGB and Gesture Sensor
Features
RGBC Light Sensor, Proximity and Gesture Detector with IR LED in an Optical Module
Miniature Package Size: L3.94 x W2.36 x H1.35 mm
I2C Interface Compatible with Dedicated Interrupt Pin
High Sensitivity Enabling Operation Behind Darkened Glass
RGBC Light Sensing with Integrated UV-IR Block Filter
Geometrically Arranged RGBC Photodiodes Providing Uniform Angular Response
Calibrated to 100mm Detection Distance Eliminating Customer End Product Calibration
Four Separate Photodiodes Sensitive to Different Directions
Proximity and Gesture Sensing with Integrated Visible Block Filter
Patented Shield Design Minimizing Proximity Cross Talk
Integrated Optical Lens Collimating IR LED Beam and Improving Photodiode Sensitivity.
Low Power Consumption: 1.0 µA typical in Sleep Mode
Applications
Display Backlight Control
Correlated Color Temperature Sensing
Cell Phone Touch-screen Disable
Digital Camera Touch-screen Disable
Mechanical Switch Replacement
Gesture Detection
APDS-9960
Lifecycle Status
Obsolete
Sensor type: Proximity sensor
Maximum switching frequency: 400 kHz
Maximum output voltage: 3.8 V
Inductive distance: 100mm
Switch mode Number
Output type: Drain open circuit
Installation type: Soldering chip
Pin count: 8
Maximum power supply current: 250 μA
Size: 3.94 x 2.36 x 1.35 mm
Height: 1.35mm
Length: 3.94mm
Minimum operating power supply voltage: 2.4 V
Maximum operating power supply voltage: 3.6 V
Minimum working temperature: -30 °C
Width: 2.36mm
Maximum operating temperature: +85 °C
Specifications:
| Sensor type |
Proximity sensor |
| Maximum switching frequency |
400 kHz |
| Maximum output voltage |
3.8V |
| Inductive distance |
100mm |
