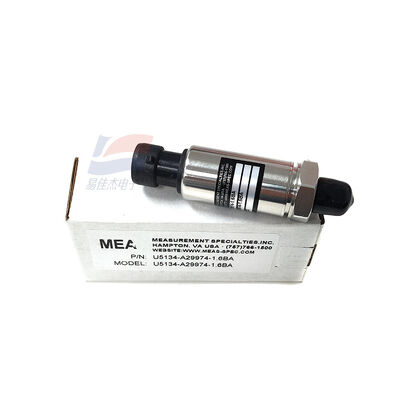

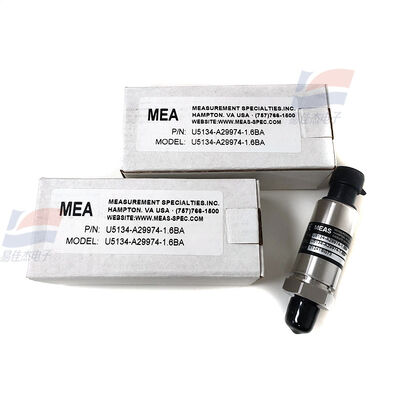

YJJ U5134-A29974-1.6BA High-Precision Pressure Transmitter for Industrial Pressure Monitoring

Product Description:

YJJ U5134-A29974-1.6BA High-Precision Pressure Transmitter Is Used for Industrial Pressure Monitoring

Features:

Model Analysis

U5134: UltraStable Series High-Precision Piezoresistive Pressure Sensor

A29974: Internal Material Code

1.6BA: Range 0~1.6MPa (16bar), Gauge Pressure Type, Stainless Steel Isolation Diaphragm

Principle: Silicon Piezoresistive, Oil-filled Isolation 316L Stainless Steel Diaphragm, Capable of Measuring Gas/Liquid

Positioning: Industrial-grade High-Precision, High-Stability OEM Pressure Core / Transmitter

II. Core Technical Parameters

Range: 0~1.6MPa (0-16bar) Gauge Pressure

Accuracy: ±0.1% FS (Full Scale), Comprehensive Error of Non-Linearity, Hysteresis, and Repeatability is Extremely Low

Overload Pressure: 2 Times Range (3.2MPa); Burst Pressure: 3 Times Range

Output Signal: 0.5-4.5V Proportional Amplification Output (Customizable 4-20mA)

Power Supply: 5VDC (Standard)

Medium Compatibility: 316L Stainless Steel Diaphragm, Compatible with Water, Hydraulic Oil, Compressed Air, Weakly Corrosive Fluids

Operating Temperature: -40℃ ~ +125℃; Compensation Temperature -20℃ ~ +85℃

Response Time: <1ms, Rapid Capture of Dynamic Pressure

Long-Term Stability: ≤±0.1% FS / Year, Anti-Drift

Structure: Small Package, Threaded Installation, Anti-Vibration, Anti-Shock

III. Main Applications (Suitable for Your Gas Sensor / Industrial Instrument Business)

Industrial Hydraulic / Pneumatic Systems: Hydraulic Station, Air Compressor, Cylinder Pressure Monitoring and Closed-loop Control

Gas Analyzer Accessories: Gas Sensor Gas Path Pressure Monitoring, Sampling Pump Pressure Control, Flow Sensor Pressure Compensation (Compatible with Shengmi, SENKO, Xiangxiang, Osun, etc. Complete Instruments)

Fluid Equipment: Water Supply Pipeline, Water Treatment, Refrigeration Equipment, Gas Pipeline Pressure Detection

Medical / Laboratory Instruments: Respirator Pressure Monitoring, Precision Fluid Control Equipment

Automation Equipment: Injection Molding Machine, Testing Machine, Construction Machinery Pressure Collection

Safety Monitoring: Pressure Over-limit Alarm, Leakage Monitoring, Pressure Closed-loop Regulation
