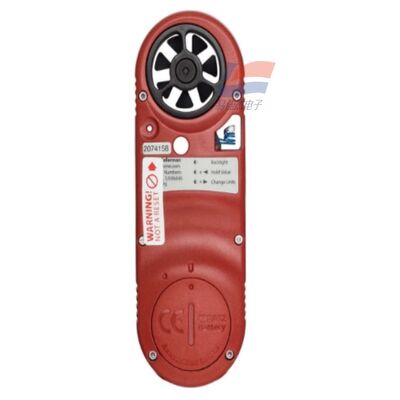

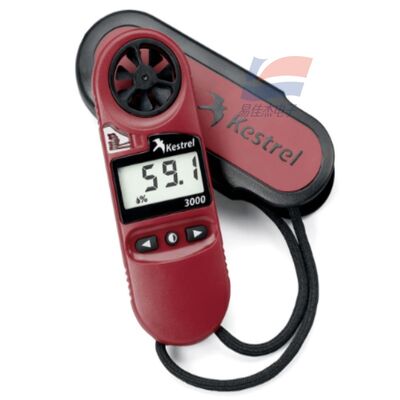

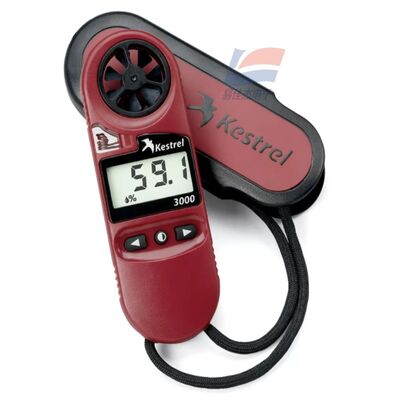

YJJ Kestrel 3000 NK3000 Handheld Portable Integrated Anemometer Wind Speed Weather Measurement

Product Description:

YJJ Kestrel 3000 NK3000 Handheld Portable Integrated Anemometer for Wind Speed and Weather Measurement

Features:

I. Product Positioning

Kestrel Pocket Basic Weather Station, Portable Integrated Anemometer with Wind Sensor, No Need for External Probe, Integrated Wind Wheel, Temperature and Humidity Sensors, Focus on Simple Outdoor Weather Measurement, Compact in Size, Waterproof and Shockproof, It is an Entry-level Handheld Environmental Monitoring Device for Outdoor Work and Outdoor Sports, Corresponding to the previous white background with red body style.

II. Core Measurement Parameters (Factory Standard, 25℃/1013 hPa)

1. Wind Speed / Wind-related Indicators

Wind Speed Range: 0.6 - 40 m/s (2.2 - 144 km/h; 1.3 - 89 knots; 2 - 90 mph)

Wind Speed Accuracy: ±0.3 m/s or Reading ±3% (Take the Larger Value)

Resolution: 0.1 m/s

Peak Wind Capture: Automatically Records Peak Gust Wind Speed

Wind Chill (Wind Chill Index): Automatically Calculates Cold Wind Feeling Temperature at Low Temperatures

2. Temperature Measurement

Range: -45℃ - +60℃

Accuracy: ±0.5℃

Resolution: 0.1℃

3. Relative Humidity RH

Range: 5% - 95% RH

Accuracy: ±3% RH (20% - 80% Range)

Resolution: 0.1% RH

Derived Calculation: Heat Index (Heat Index for High Temperature Risk Feeling Temperature)

4. Atmospheric Pressure / Altitude

Static Pressure Range: 600 - 1100 hPa

Accuracy: ±1 hPa

Altitude Conversion: Automatically Calculates Relative Altitude Based on Atmospheric Pressure

Dew Point Temperature: Temperature and Humidity Linked Calculation

5. Additional Calculation Functions

Wind Chill Temperature, High Temperature Heat Index, Dew Point, Wet Bulb Temperature, Atmospheric Pressure Trend Changes

III. Electrical and Hardware Specifications

Power Supply: Single AA (5) Alkaline Battery, Standard Continuous Usage Battery Life 300 Hours

Display: Monochrome LCD, Backlight Adjustable, Visible in Strong Light

Operation Buttons: 3-Key Simple Operation, Units Switched One by One (Metric / Imperial)

Wind Wheel Structure: External Removable Six-Leaf Wind Wheel (The black top wind wheel in your picture), Can Be Separately Replaced for Blockage, Dustproof and Rainproof

Protection Grade: IP67 Waterproof, The Whole Machine Can Be Short-Term Immersed in 1 Meter Clear Water, Can Be Used in Rainy and Wading Scenarios

Machine Material: Impact-resistant ABS Engineering Plastic, Matched with Red Hard Protective Storage Case

Size Weight: Body 122 × 45 × 25 mm, Net Weight Approximately 90g (Without Battery)

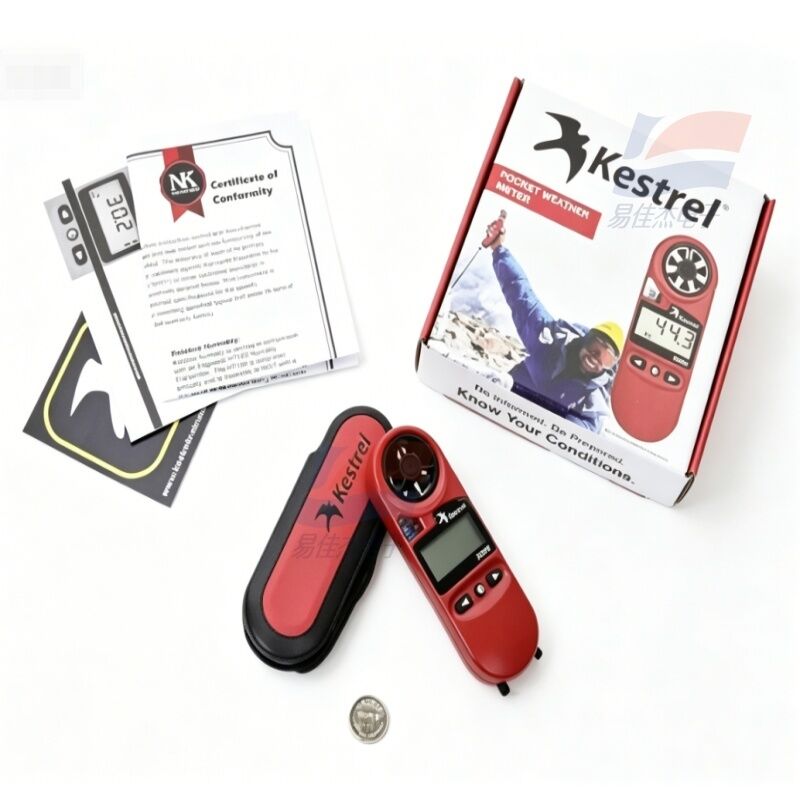

Calibration Accessories: Factory-Provided NK Original Calibration Certificate, Supports Third-Party Measurement Calibration

Storage: Basic Version Has No Data Storage, Only Real-time Readings; No Bluetooth / Data Export (Upgrade Model 3500 Includes Storage)

IV. Working Principle

Wind Speed Detection: Open-top Six-Leaf Wind Wheel at the Top, Air Flow Pushes the Wind Wheel to Rotate, Photoelectric Counting Converts Real-time Wind Speed and Peak Gust Wind Speed;

Temperature and Humidity: Ventilated Sensor Chamber on the Side of the Body, Natural Ventilation Measuring Environmental Temperature and Humidity;

Atmospheric Pressure Chip: Built-in High-Precision MEMS Pressure Sensor, Reads Atmospheric Pressure and Converts to Altitude and Dew Point;

Single Chip Integrates All Sensor Data, Automatically Calculates Wind Chill, Heat Index, Dew Point, etc. Derivative Meteorological Parameters, Screen Displays Real-time.

V. Main Application Scenarios

1. Outdoor Sports (Civilian Mainstream)

Archery: Outdoor Ballistic Wind Speed Correction, Long-distance Wind Deviation Reference

Sailing, Surfing, Paragliding, Kite Sports: Real-time Monitoring of Sea Surface / Mountain Area Gust Wind, Judging Safe Takeoff and Landing Timing

Golf, Mountain Cycling, Marathon Events: Field Wind Speed, Perception Temperature Monitoring, High Temperature Heat Risk Warning

2. Field Engineering Operations (Industrial Commercial)

Power / Wind Turbine Inspection, Communication Tower Construction: High-altitude Work Wind Speed Safety Threshold Judgment (Stop Work in Strong Wind) Construction scaffolding and tower crane outdoor construction: Real-time measurement of wind gusts to avoid risks of falling objects and overturning.

Geological exploration, forestry patrol, waterway surveying: Field-based meteorological data recording.

3. Firefighting, emergency rescue

Forest firefighting, mountain search and rescue: Monitoring wind speed, temperature and humidity around the fire site to predict the direction of fire spread; Calculating heat index in high-temperature environments to prevent rescue personnel from suffering heat stroke.

4. Agriculture, forestry, agricultural planting

Farm, orchard, greenhouse, pest control drone operations: Monitoring wind speed when spraying pesticides to avoid pesticide drift; Recording field temperature, humidity and dew point to assist crop management.

5. Education, research, meteorological observation

Geographical meteorological experiments in primary and secondary schools, university field environment research; Simple meteorological inspections in small parks and scenic areas; Outdoor study tours, summer camp environment safety monitoring.

6. Security, blasting operations

Open-pit mines, engineering blasting sites: Monitoring wind speed and direction (only wind speed values), controlling the range of dust dispersion from blasting.
