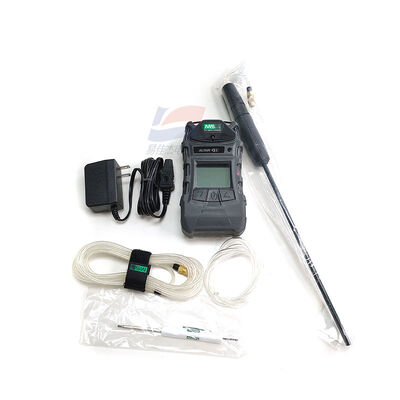

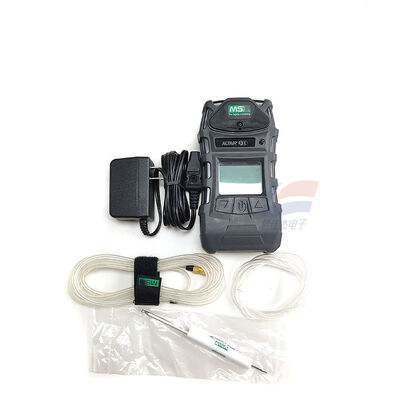

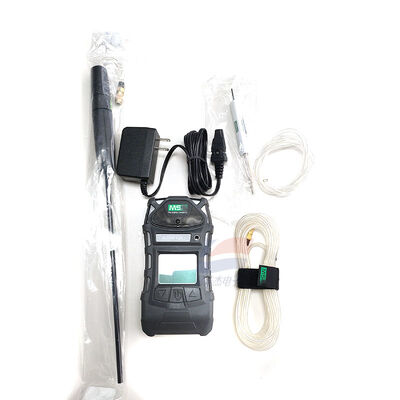

YJJ 10125243 (Altair 5X) Five-in-One Pump-Type Gas Detector for LEL/O2/CO/H2S/CO2

Product Description:

YJJ 10125243 5X (Altair 5X) Pump-Draw Type Five-in-One Gas Detector LEL/O2/CO/H2S/CO2 Pump Suction Monochrome Display

Features:

Material Model: 10125243

Model: Altair 5X / Tengyin 5X

Configuration: Built-in sampling pump, single-color LCD screen, five sensors, simultaneously detecting LEL flammable, O₂ oxygen, CO carbon monoxide, H₂S hydrogen sulfide, CO₂ carbon dioxide

Sampling Method: Built-in electric pump suction type (can be connected with an extension rod to detect gases in confined spaces deep inside)

Screen: High contrast single-color black and white display, Chinese menu, buttons can be operated with gloves on

Core Sensing Technology: XCell intelligent integrated sensor, equipped with signal processing chip

II. Complete detection of gas range, accuracy, and resolution Table

Gas Detection Measurement Range Resolution Typical Accuracy Sensing Principle

LEL Flammable Gas 0 - 100%LEL 0.1%LEL ±1%LEL Catalytic Combustion Type

O₂ Oxygen 0 - 30%Vol 0.1%Vol ±0.1%Vol Electrochemical

CO Carbon Monoxide 0 - 2000ppm 1ppm ±1ppm Electrochemical

H₂S Hydrogen Sulfide 0 - 200ppm 1ppm ±1ppm Electrochemical

CO₂ Carbon Dioxide 0 - 10%Vol 0.01%Vol ±0.03%Vol Infrared NDIR

III. Hardware Electrical Parameters

Pump Performance

Built-in constant flow electric sampling pump, standard with hose/rod, can extract gas up to 5 - 30m deep; pump failure automatically alarms, anti-blockage protection.

Power Supply and Battery Life

Standard with rechargeable lithium battery; optional external AA alkaline battery

Continuous working time of pump suction mode ≥ 12 hours; charging time ≤ 6 hours

Mechanical Dimensions and Weight

Size: 170 × 88.7 × 48.8mm (with CO₂ infrared sensor)

Overall weight: 520g

Shell: Fully covered with anti-slip rubber PC material, 3-meter drop does not damage, protection grade IP65 waterproof and dustproof

Display and Alarm System

Single-color LCD real-time display of five gases simultaneously, peak record, TWA/STEL time-weighted concentration

Triple alarms: 95dB high-decibel buzzer, red LED flashing, body vibration alarm; two-level alarm thresholds can be customized

Special Safety Features:

MotionAlert Fall Alarm: Automatic strong alarm after 30 seconds of no movement, suitable for rescue in confined spaces

InstantAlert One-click Manual Alarm, rapid warning to surrounding personnel

Environmental Operating Conditions

Working Temperature: -20℃ ~ +50℃

Working Humidity: 10% - 95% RH without condensation

Storage Temperature: -40℃ ~ +60℃

Sensor Lifespan

Catalytic, electrochemical sensors ≥ 4 years; infrared CO₂ sensor ≥ 5 years; the equipment alerts sensor lifespan expiration in advance to reduce downtime

Calibration Advantage

Five-gas synchronous calibration only takes 60 seconds, supports single-point/multi-point calibration, built-in calibration record storage; sensor plug-and-play, on-site replacement without factory return.

IV. Core Product Advantages

Pump suction type suitable for confined spaces: no need to go down the well or into the tank, external probe can be used to extract gas from deep inside, avoiding the risk of poisoning or explosion in a confined space;

Integrated three gases, covering four types of safety risks: oxygen deficiency, combustible explosion, toxic exhaust gas, and carbon dioxide suffocation;

XCell sensor anti-poisoning and drift are extremely small, stable in industrial oil pollution and humid environment;

Single-color screen is economical and durable, clear reading under low temperature and strong light, with a fault rate much lower than color screens;

Fall alarm, peak storage, TWA occupational exposure calculation, meeting safety supervision, OSHA occupational safety standards;

IP65 overall protection, durable in harsh working conditions such as mines, sewage, chemical plants, and fire-fighting;

Support USB data export, record gas concentration logs, used for safety inspection and archiving.

V. Main Application Scenarios

1. Confined Space Operations (Core Use)

Swimming pools, septic tanks, underground pipe galleries, storage tanks, ship cabins, reaction vessels, cellars, underground cable galleries, go down the well to pre-detect oxygen deficiency, combustible, hydrogen sulfide, and CO₂ suffocation risks.

2. Petrochemical, Gas Industry

Oil wells, gas stations, refining workshops, gas pipeline emergency repair, LNG station, detect combustible leakage + toxic exhaust gas.

3. Municipal Environmental Sewage Treatment Plants

Sludge tanks, aeration tanks, underground sewage corridors, sulfur dioxide, carbon dioxide, oxygen deficiency monitoring.

4. Fire Emergency Rescue Fire scene, basement, and sealed building search and rescue, detecting CO toxic smoke, oxygen deficiency, and flammable/explosive risks.

5. Mines, tunnels, underground projects

Coal mines, subway tunnel construction, monitoring for combustible gas, oxygen deficiency, CO, and CO₂ accumulation.

6. Cold chain storage, fermentation, grain depot, cold storage

Fermentation workshops, grain depots, fruit and vegetable controlled atmosphere storage, carbon dioxide concentration exceeding standard for asphyxiation warning.

7. Buildings, pipeline maintenance, boiler room

Gas pipeline leak detection, boiler basement, basement garage, detection of flammable and carbon monoxide poisoning.
